Case Study: From Risk to Reliability: Reduced Combustible Dust Hazards and Improved Product Quality with Air Dynamics Technology

In modern manufacturing, efficiency, quality, and safety must operate in the same space. For companies working with fiberglass and composite molded materials, main-taining that balance can be difficult—especially when operations generate combustible dust.

A leading U.S. aftermarket automotive manufacturer faced this exact challenge at its mid-west facility that produces fiberglass truck caps, tonneau covers, and commercial enclosures.

During key finishing processes—including sanding, trimming, and cut-ins—significant amounts of fine fiberglass dust were released into the workplace. A Dust Hazard Analysis (DHA) identified a moderate combustible dust risk, while existing dust control methods proved ineffective. Dust recirculated throughout the facility, reducing visibility, impacting product quality, and increasing housekeeping demands. With a broad manufacturing footprint and hundreds of suppliers supporting production, maintaining safe, clean and compliant operations are critical.

At the customer's facility, fiberglass truck caps are produced through molding, trimming, cutting, and sanding processes. These steps generate fine particulate dust—particularly during gel coat sanding, fiberglass trimming (de-flashing), and window cutouts.

This challenge is common in industries working with fiberglass composites—including automotive, aerospace, marine, and defense—they all face similar risks. Whether manufacturing aircraft fuselages, boat hulls, or recreational products, the process typically includes:

• Fiberglass layup in molds
• Gel coat application
• Part removal and finishing
• Aggressive trimming and sanding (de-flashing)

It is during the finishing phase that dust generation becomes most significant. While the customer had already addressed gel coat fumes using an air scrubber, combustible dust remained a serious safety concern along with an ongoing housekeeping challenge.

A Common Misstep: Misapplied Technology

Before engaging Air Dynamics, the facility attempted to repurpose technology suited for a different application.

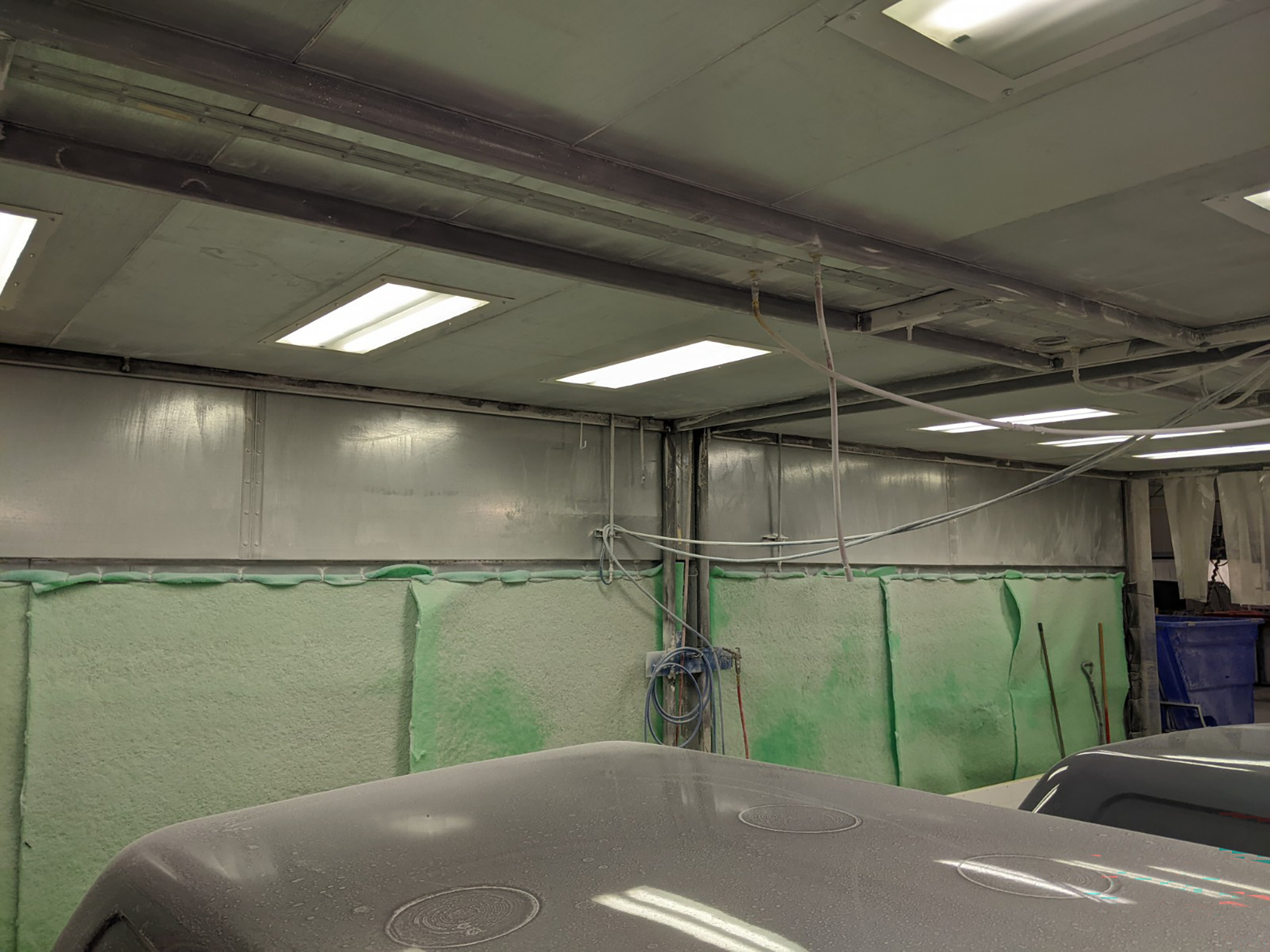

A paint booth—designed for fume and gas control—was repurposed into a dust collection system by adding synthetic filtration media. This approach introduced several critical issues:

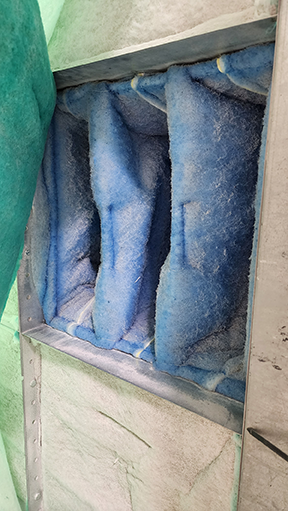

• Polyester media filtration was too coarse to capture fine fiberglass particulates
• Blanket-style media required cleaning or replacement multiple times per day
• Dust passed through the system and was reintroduced into the facility
• HVAC systems redistributed contaminants into other production areas
• Air quality and product quality both declined
• During a site walkthrough, Air Dynamics observed visibility inside the sanding and cut-in booth reduced to less than 10 feet due to airborne dust.

This situation reflects a broader industry pattern: applying the wrong technology to reduce upfront cost often increases long-term risk, expense, and operational inefficiency.

Air Dynamics recommended installing an ActiveWall™ dust collector at each sanding booth, focusing on source capture rather than ambient collection.

The solution addressed several key operational constraints:

• Limited floor space: Slim, wall-mounted design pre-served production area
• No ductwork required: Simplified installation and re-duced capital cost
• No makeup air system needed: Lower energy and oper-ating costs
• Indoor installation: Installed using general labor
• Effective local exhaust: Aligned with ACGIH recommended practices
• Minimal mechanical and electrical requirements: Modular, scalable design

The customer initially installed a single unit for evalua-tion, quickly recognizing the performance difference compared to previous approaches.

The impact was immediate:

• Significant reduction in airborne dust
• Improved visibility within work areas
• Cleaner production environment

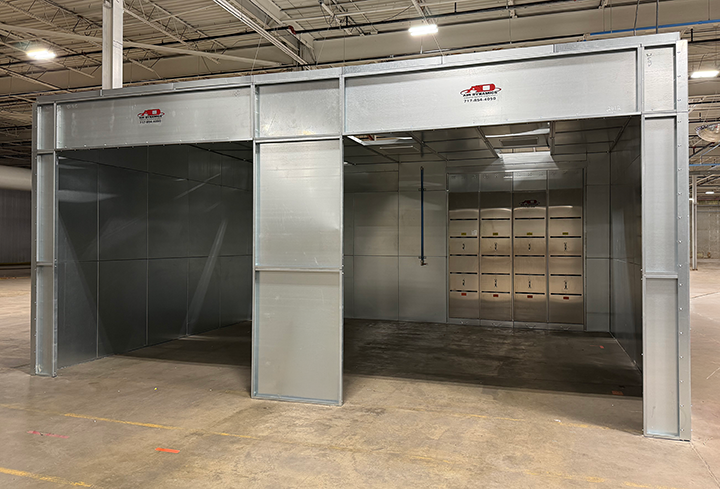

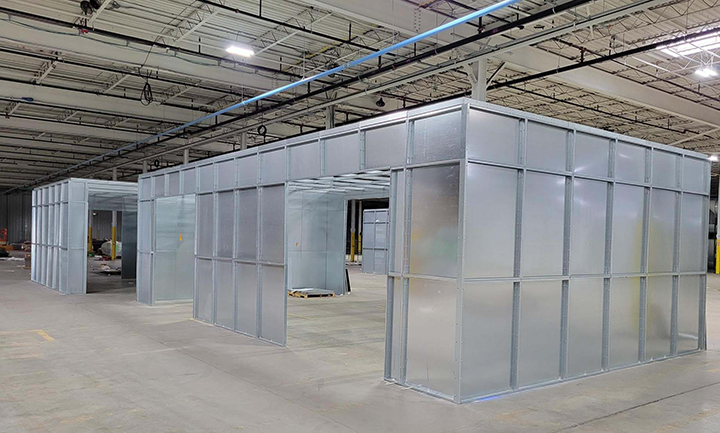

Following a facility expansion and operational consolidation one year later, the customer ordered six more Active-Wall™ units, along with custom galvanized steel booth enclosures measuring 20’ × 20’ and 20’ × 40’.

With the implementation of engineered dust collection:

• Combustible dust risk decreased from moderate to low
• The system aligned with NFPA standards and insurance requirements
• Worker safety and visibility improved
• Product quality increased with reduced contamination and rework
• Maintenance demands decreased compared to the previous system

ActiveWall™ systems are typically delivered within six weeks, enabling rapid deployment when risk mitigation cannot wait.

This case highlights a critical principle for manufacturers working with fiberglass and composite materials: Dust collection must match the hazard.

Improper dust control can:

• Increase explosion risk
• Degrade air and product quality
• Spread contaminants throughout a facility
• Create ongoing maintenance burdens

Effective solutions capture dust at the source while integrating seamlessly into existing operations without consuming valuable floor space.

The customer’s experience demonstrates how quickly a manageable risk can escalate when systems are mismatched—and how effectively it can be resolved with the right engineering approach.

By partnering with Air Dynamics, the company transformed a visibility-limited, high-risk environment into a controlled, compliant, and scalable operation.

For manufacturers facing similar challenges, the path forward is clear: engineered pollution control solutions, applied correctly, deliver both safety and performance.

If you have similar challenges or have questions, we are here to help.
