Airflow Optimization, Energy Reduction, and Pressure Control in a Dust-Intensive Manufacturing Facility

The facility operated seven independent dust collectors (three ATC units and four Donaldson units) without a coordinated air balance strategy or dedicated make-up air. As production demands increased, the building experienced excessive negative pressure, unstable booth performance, and escalating energy costs.

Key issues included:

• No make-up air, causing the facility to behave like a vacuum chamber
• High negative pressure affecting safety, door operation, and operator comfort
• Oversized dust collection systems relative to actual process demand (per ACGIH)
• Excessive fan horsepower and electrical demand relative to actual process needs
• Inability to maintain a consistent indoor temperature during colder months

These conditions resulted in high operating costs, strain on the electrical infrastructure, and inconsistent dust capture performance.

Air Dynamics conducted a system-level airflow and pressure evaluation focused on:

• Total exhaust volume versus required capture velocity
• Booth-to-dust-collector airflow matching
• Building pressure balance
• Energy consumption driven by oversized and mismatched systems

The assessment confirmed that dust collectors were operating above required airflow levels and that uncontrolled exhaust was driving both energy waste and comfort issues.

Air Dynamics designed and implemented a fully integrated airflow and pressure control solution, including:

• Make-Up Air Unit (MAU):
• Sized to offset exhaust airflow and equalize booth and building pressure
• Direct-fired heater maintaining a stable ambient temperature of 65°F
• Booth Pressure Control:
• Installation of booth pressure sensors
• Sensors dynamically matched booth exhaust to dust collector airflow
• Dust Collection Optimization:
• Recalculation of required airflow per ACGIH guidelines
• Reduction of total dust collector airflow volume by 32%
• Right-sizing fan motors from 11 HP to 7.5 HP to operate efficiently
• Coordination of seven existing collectors under a unified airflow strategy

• 32% reduction in total dust collector airflow
• ~32% reduction in fan energy consumption (based on motor downsizing from 11 HP to 7.5 HP)
• Electrical demand reduction: ~3.3 kW per fan motor
• Annual electrical energy savings (estimated): ~13,200 kWh per fan motor (4,000 hrs/year)
• Estimated electrical cost savings: ~$1,450 per fan motor/year ($0.11/kWh)
• Stable building pressure and controlled booth operation
• Indoor temperature maintained at 65°F
• Improved safety, comfort, and system reliability
• Estimated simple payback: 3-4 years

Note: All values in the Results Snapshot are engineering estimates based on measured airflow reductions, standard fan laws, typical operating schedules, and average utility rates. Actual results may vary depending on facility conditions, equipment performance, and operational practices. These figures are intended to illustrate system improvements, not guaranteed savings.

Quantified Energy & Cost Savings

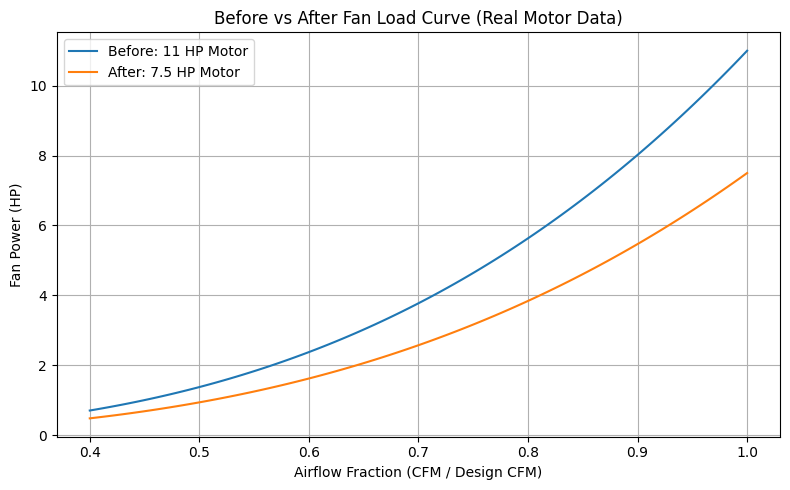

Using documented operating conditions and fan laws with the corrected motor sizing:

Engineering assumptions:

• Each fan operates 4,000 hours per year
• Electric rate: $0.11/kWh
• Motor efficiency: 90%

Measured results per fan motor:

• Power reduction: from 11 HP → 7.5 HP (~32%)
• Electrical demand reduction: 3.3 kW per fan
• Annual energy savings: 13,200 kWh per fan
• Annual cost savings: ~$1,450 per fan

Total system impact (7 fans):

• Annual energy savings: ~92,400 kWh
• Annual cost savings: ~$10,150

Additional benefits:

• Reduced wear on motors, bearings, and fan components
• 25% reduction in heating energy due to lower exhaust volumes

Operational & Safety Improvements

• Improved worker safety through pressure stabilization
• Elimination of door interference and drafts
• Consistent dust capture performance
• Freed electrical capacity for other production needs
• Reduced maintenance burden across dust collectors

Conclusion

This project demonstrates how system-level engineering—balancing airflow, pressure, and thermal requirements—can unlock measurable energy savings while improving safety and reliability. By right-sizing existing equipment, Air Dynamics delivered a cost-effective solution aligned with operational and financial goals.
